ARC Energy Resources Ltd
Size
SME
Direct employees
74
Turnover (reported)
£6,500,000
Regional Markets
Asia, Africa, Europe, North America
Nuclear Contracting Tiers
Tier 5: Processors & Fabricators
Tier 4: Sub-component Suppliers/Distributors

Accreditations

  • ASME
  • ISO 14001
  • ISO 9001:2015
  • OHSAS 18001

F4N Case Studies

ARC Energy Resources Ltd

Steel Fabrications

Nuclear quality welding & fabrication, Weld overlay cladding, radiographic-quality fabrications, NDT, heat treatment, welding inspection.

Overview

Arc Energy Resources specialises in the supply of corrosion resistant cladding and the manufacturing of fabrications for the nuclear, oil & gas, renewable energy, petrochemical, defence, agritech, rail, and water industries, delivered by a highly qualified, fully accredited and experienced team.
Our experienced team of coded welders supported by 3 European Wedling Engineers and Project Managers regularily deliver Nuclear Quality fabricated and welded packages on a wide variety of materials and process's for new build, decom and defence projects. Accredited to ISO3834 and 1090-2 to execution class 3.

Arc Energy’s weld overlay cladding services are utilised by clients in a vast number of industry sectors where service conditions require corrosion resistant properties. Weld overlay cladding provides the assurance of a heavy-duty metallurgically-bonded protective layer that will not be undermined or dislodged in service. Welding can be overlaid to an application externally (ie flange face) or weld inlay internally (ie through a pipe bore).
Integrity of the cladding can be confirmed in-house via a variety of non-destructive testing (NDT) methods including dye penetrant and ultrasonic.
Typical materials for cladding in common use at Arc Energy include alloy 625, alloy 825, Monel 60, Hastalloy C-22, Hastalloy C-276, Ultimet, Stellite 6 and stainless steels, as well as many less common alloys.
With over 5,000 qualified weld procedures, and the technical expertise to back them up, Arc Energy can meet any base material and cladding combination.

An extensive library of weld procedures and welder qualifications are certified in accordance with international standards including ASME, API, ISO, DNV, Norsok, MIL and many others. A wide range of base metal/overlay combinations are covered, including carbon and low alloy steels, martensitic, austenitic, 22Cr duplex and 25Cr super duplex stainless steels, nickel and copper based alloys.
Key fabrication and welding activities are supported by in-house heat treatment, rolling, press brake, NC plasma profiling, NDT, PMI and bead blast facilities.

Arc Energy Resources is a proud holder of ASME U & ASME U2 Stamps, enabling us to provide a range of services from full supply of ASME code compliant equipment and pressure vessels to subcontract welding on free-issue ASME standard material.

Through combining our core activities of weld overlay cladding and fabrication, we are able to deliver a fully integrated project management service, providing savings in both production time and costs. Our in-depth knowledge and understanding of many market sectors gives us a specific appreciation of job demands and requirements.

Arc Energy Resources holds Investors in People Silver award, demonstrating our commitment to our staff, and is a member of the Advisory Board for NSAN (The National Skills Academy Nuclear) which ensures that issues relating to key skills within the industry are being addressed.

Products and Services

Product Sector
Waste Storage Containers & Systems - Low & Intermediate Level Waste Nuclear Civil
Tube & Pipework - Large Bore Oil & Gas including LNG
Storage Tanks and Systems - Small to Large Nuclear Civil
Pond & Pool Liner Fabrications Nuclear Civil
Pressure Vessels, Heat exchanger & Tanks - Coded Standards Construction - Strategic Platforms & Vessels
Pipe, Fittings, Reducers, Flanges Bending, Supports Nuclear Civil
Penetrations - Nuclear Nuclear Defence - Naval Marine
Gantry Access & Mezzanine Steelwork Systems Nuclear Civil
Heat Treatment & Material Conditioning Nuclear Civil
Fabrication Cutting Forming Pressing & Bending - General Civil Works Nuclear Civil
Fabrication Cutting Forming Pressing & Bending - Modules & Skid Mounted Systems Nuclear Civil
Fabrication Cutting Forming Pressing & Bending - Support & Critical Structural Items Nuclear Civil
Fabrication Cutting Forming Pressing & Bending - Support & Critical Structural Items Nuclear Civil
Heat Treatment & Material Conditioning Nuclear Defence - Naval Marine
Welding Manual Nuclear Defence - Naval Marine
Welding Automated incl Systems Nuclear Defence - Naval Marine

Weld overlay cladding
Radiographic-quality fabrications
Precision milling & turning
NDT
Heat treatment
Welding inspection.

Site Facilities

Shop Floor

4500m2 Flexible work spaces, dedicated stainless and duplex fabrication shops, dedicated cladding workshop with 15t overhead lifting capability.

Welding & Cladding

Capability Swing Length Width
Gas Tungsten Arc Welding (GTAW)Automated & Manual Min: - - -
Max: - - -
Robotics8 Axis Fanuc Robotic TIG & PTA Head Min: - - -
Max: - - -
Submerged Arc Strip Cladding (SASC) Min: - - -
Max: - - -
Submerged Arc Welding (SAW) Min: - - -
Max: - - -

Inspection / Testing

  • Advanced testing facilities
  • Clean room facilities
  • CMM machines
  • Non destructive testing - Magnetic Partical
  • Non destructive testing - Radiography
  • Non destructive testing - Ultrasonic
  • Pressure / Hydro Testing
  • Proof Load Testing

Design

  • CAD Design - 2D
  • CAD Design - 3D
  • CAM Design - 2D
  • CAM Design - 3D

Recent Work

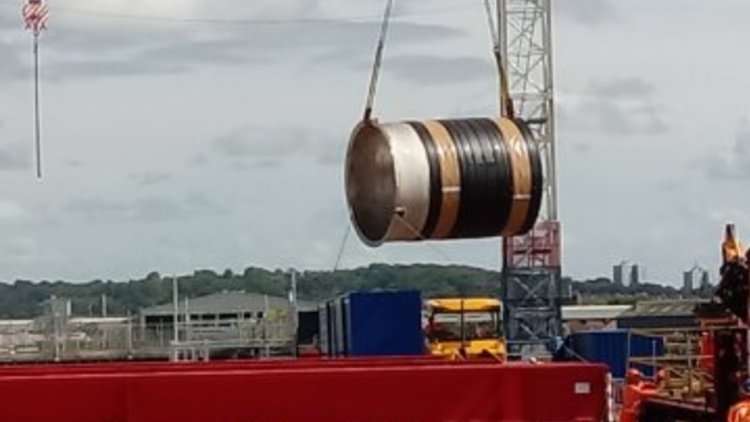

Super Duplex Marine Works Pile Sleeves

fabrication, TIG & Sub-Arc Welding, Manipulation & safe handling, NDT, painting of package of 20 Duplex Pile Sleeves for Marine Works on Civil nuclear new build project

Super Duplex Marine Works Pile Sleeves

Baseplate

Turning, drilling, tapping and inspection of baseplate.

Baseplate

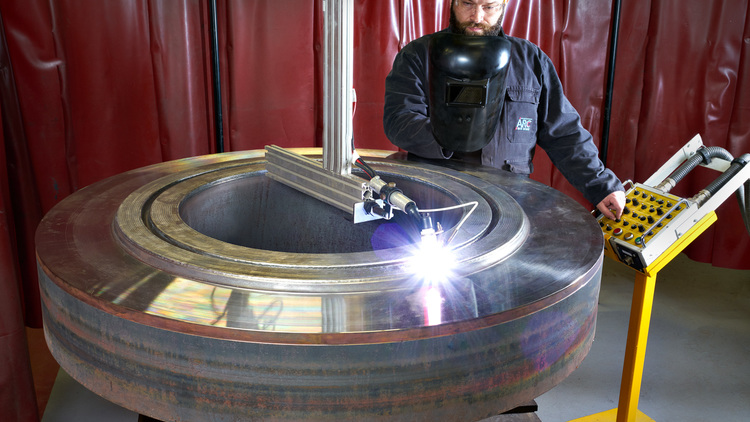

32" Flanges

Groove and face cladding of a package of 32" flanges, including NDT.

32" Flanges

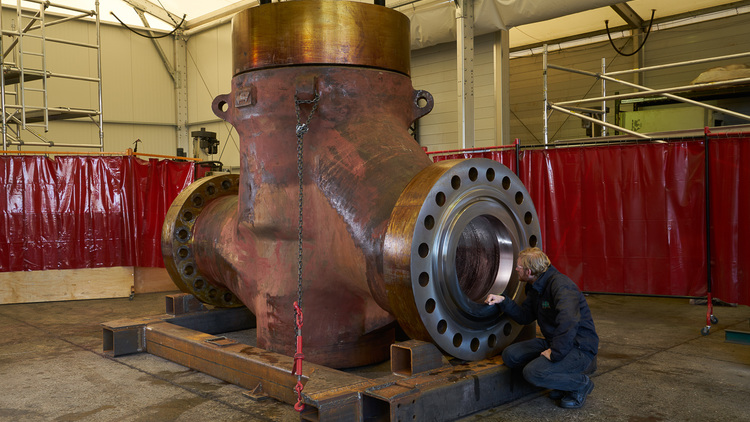

30" Globe Valves

Full internal cladding of 30" globe valves with alloy 625.
NDT, machining and pressure testing.

30" Globe Valves
